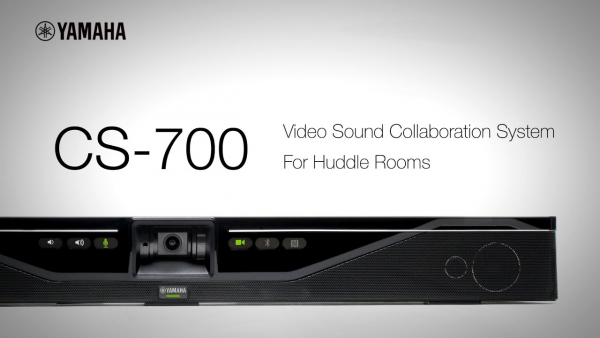

Yamaha CS-700AV Video Bar for Huddle Rooms

Yamaha CS-700AV Video Bar for Huddle Rooms

Equip your huddle room with best-in-class audio, video, and screen-sharing capabilities with this all-in-one video conferencing system. Designed with smaller spaces in mind, this wall-mounted system features ultra-wideband audio and high-quality video to bring spectacular clarity to all of your communication and collaboration needs. Integrated remote management capability makes it easier than ever for your IT department to remotely monitor, manage, and upgrade huddle room installations.

  •  USB audio and video support
  • Connect calls with Bluetooth & NFC
  •  Works with your chosen UC application
Stock status: Call to check Availability

Product Information

All-in-one video conferencing system

The Yamaha CS-700 industry-leading 120 degree ultrawide angle camera captures all meeting participants in one field of view. The CS-700 camera covers 80% more areain the whole room, removing the hassle of panning and zooming cameras to see everybody in the room. The high pixel count of the CS-700 ensures that every expression is captured and seen for people up to 10ft/3m from the camera. It is truly a “set it and forget it” video system.

Yamaha’s Finest Audio Experience

“Hear every word” has never meant more to meeting success than today. The CS-700 features a beamforming microphone array that picks up every word spoken in the room and delivers it to the far end. Combine that with award-winning audio processing technology integrated in the CS-700 and you have easy, natural conversations between meeting participants with clarity and intelligibility for all.

Table space in huddle rooms is typically at a premium. The Yamaha CS-700 is a wall mount system, eliminating any need for table-top equipment in the huddle room. The wall mount provides simple installation and makes connecting the wires to the CS-700 easy by use of a special pivot design feature. If you can drill a hole, you can install the CS-700.

Managing up to hundreds of huddle rooms is a challenge for any IT department. The Yamaha CS-700 enables remote monitoring and management of the units as well as configuring units in bulk. Upgrade them remotely and automatically through the IP interface. Managing technology in the huddle room just became way simpler!

– Full API to Integrate with Room Control Systems with SSH protocol option

– Remote administration and management, system notifications (SNMP), provisioning server option, auto configuration support

– Easy local configuration with Web-UI or service application


Mount: Wall Mount Bracket for above or below display mounting, Connector: USB with strain relief, USB Host Port: Audio, video and HID supported over USB 2.0 and 3.0/3.1 (B), Ethernet: RJ 45, Bluetooth®: Audio only, Aux Audio Input: 3.5 mm Stereo, Extension Microphone Port

  • 36 W
Power Source
  • Electricity: Input Voltage 100 – 240 VAC, Input Current 1A, Input Frequency 50 – 60 Hz (Power cord length: 10 ft/3 m)
Operating Enviroment
  • Temperature: 0 – 40° C (32 – 104° F), Humidity: 20 – 85% (no condensation)
  • 861.7 (W) x 98.75 (H) x 68.5 (D) mm (34 x 3.9 x 2.7 in)
  • 3.3 kg (7.3 lbs/incl. bracket)
Supported OS
  • Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 7 (32 bit/64 bit), Mac OS X 10.11, Mac OS X 10.10
  • Wall Mounting Bracket
  • Region Specific Power Cord
  • Power Supply
  • Ethernet Cable
  • USB Cable 3 m (9.8 ft) Instructions
  • Microphones – 4 microphones beamforming array
  • Speakers – 4 Speaker elements with tweeter and mid-Woofer on left and right
  • Maximum Volume – Max SPL: 90 dB at 1 M
  • Frequency Bandwidth – For sound pickup: 160 Hz – 16,000 Hz, For playback: 160 Hz – 20,000 Hz
  • Signal Processing – Adaptive echo canceller, Noise reduction, Adaptive beamforming, Automatic gain control, Automatic room EQ, Dereverberation
  • Frame Rate and Resolution – USB 3.0: 1,080 p, 720 p, 360 p/30 fps. USB 2.0: 360 p/30 fps.
  • Field Of View – 120 degrees
  • Focus Distance – 50 cm
  • Digital PTZ – Maximum Zoom Ration: x 4
  • Video processing – DeWarping, Auto white balance, Auto exposure, Local tone mapping, 2D/3D Noise reduction
  • USB Output Format – YUY2
