Product Information
Dimensions
- Unit dimensions:
– 105 mm x 700 mm x 70 mm = 4.2” x 27.3” x 2.8” (HxWxD) without stand
– 156 mm x 700 mm x 70 mm = 6.2” x 27.3” x 2.8” (HxWxD) with stand - Weight:
– 5 lbs 2.6 oz (2342 g) without stand
– 6 lbs 4.7 oz (2856 g) with stand - Remote control dimensions: – 183 mm x 40 mm x 19 mm = 7.2” x 1.6” x .75” (HxWxD)
Application Requirements
- Supported operating systems
– Windows 7, 8.1, 10
– MacOS 10.12, 10.13, 10.14 - Support for standard audio and video device drivers
– UAC 1.0 Audio
– UVC 1.1/1.5 Video
– HID 1.11
Power Requirements
- 12VDC/5A @ 100~240VAC, 50/60 Hz PACKAGE INCLUDES

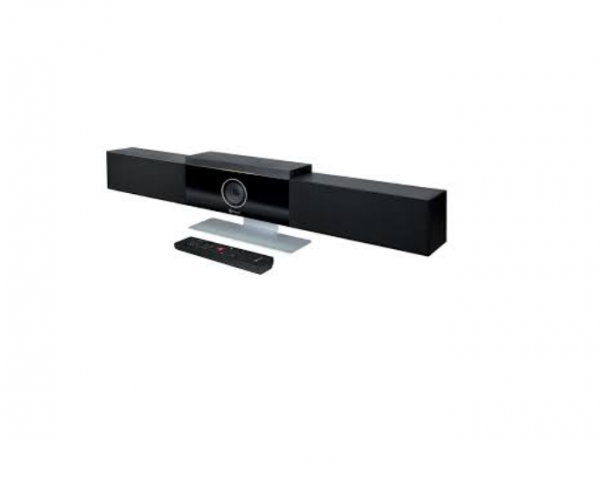

- Poly Studio
- Remote control with 2 AAA batteries
- Power adapter
- 5 m USB 2.0 cable (Type-C to Type-A)
- Wall mount kit
- Setup sheet
Optional Accessories
- Expansion microphone
- Display mount CAMERA
- 120-degree FOV
- UHD 2160p (4K) capture resolution
- Automatic people framing & speaker tracking
- 5x zoom / EPTZ
- 2 camera presets
Audio
- Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression
- Poly NoiseBlock technology
- Poly Acoustic Fence technology
- Mute/unmute controls
- Stereo microphones:
– 6-element beamforming microphone array
– 12 ft pickup range
– 120 Hz–16 kHz frequency response - Stereo speakers:
– 100 Hz–20 KHz frequency response
– Output = 90 dB @ 0.5m
Interfaces
- 1x USB 3.0 Type-C port (with 2.0 compatibility)
- Power connector
- Optional external microphone
- 3.5 mm stereo Audio In
- Kensington security lock
- 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible
- Bluetooth® 4.2
Application Compatability
- Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
– Certified for Microsoft Teams and Skype for Business
– Zoom Certified
– LogMeIn GoToMeeting® – BlueJeans Network
– Google Hangouts™ communication platform
– Amazon Chime
– Cisco Webex®
– VidyoDesktop™
– Polycom RealPresence Desktop
Security
- 802.1x support
- Certification management
Manageability (VIA WI-FI)
- Polycom Companion App (running on Win/Mac PC connected to device)
- Polycom RealPresence Resource Manager
- Polycom Device Management Service
Warranty information
- 1-year limited hardware warranty
Enviromental
- Operating temperature: 32–104°F (0–40°C)
- Relative humidity: 5–95%, noncondensing
- Storage temp
