Crestron Flex UC-C100-T- Integrator Kit for Zoom Rooms

Crestron Flex UC-C100-T- Integrator Kit for Zoom Rooms

UC-C100-T
Crestron Flex Video Conference System Integrator Kit with ASUS® Mini PC for Zoom Rooms
The UC-C100-T Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms . It supports single or dual video displays1 (not included) and features a tabletop touch screen and a UC bracket assembly.
  • Conferencing integration solution for Zoom Rooms
  • Native Zoom Rooms Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
  • Complete kit contains a 10.1 in. tabletop touch screen and UC bracket assembly
  • Optional integration with Crestron® control systems
  • Direct connection option between UC Engine and touch screen for simple installation and configuration
  • Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service
  • Enterprise-grade security – connects and communicates securely over any enterprise or SMB network
  • Supports single or dual video displays (not included)
SKU: Crestron Flex UC-C100-T MTR - ZOOM Categories: , Tags: , , , , , , ,
Stock status: Call to check Availability

Product Information

The UC-C100-Z Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms™ software. It supports single or dual video displays1 (not included) and features a tabletop touch screen and a UC bracket assembly.

Native Zoom Rooms™ Software Experience

The UC-C100-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Custom Room Integration

The UC-C100-Z system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface

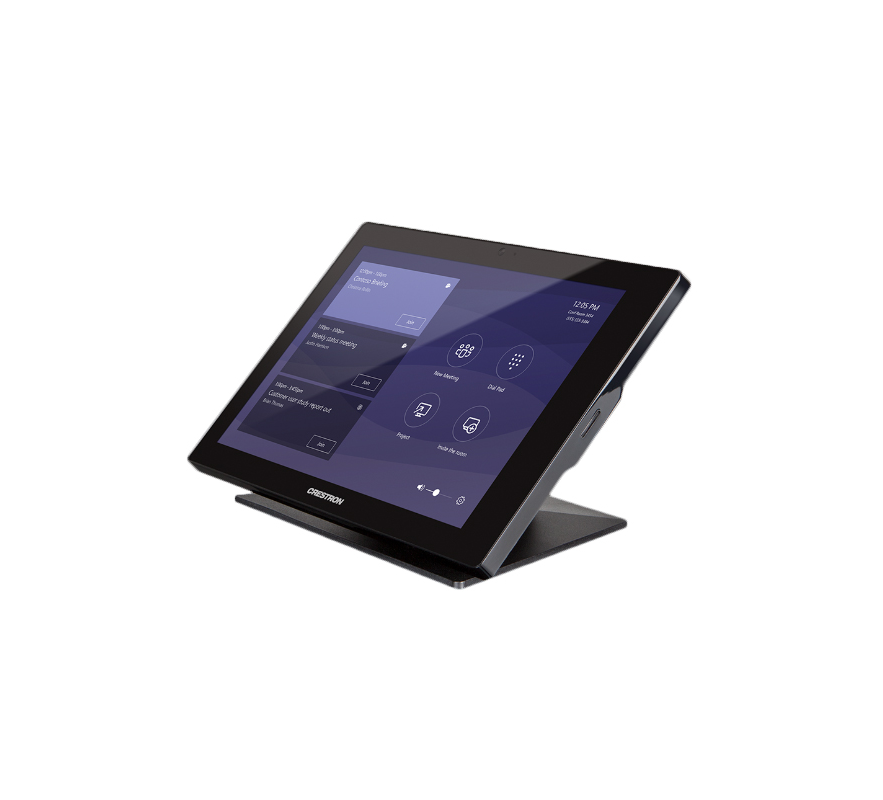

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Specifications:
Touch Screen
  • 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels
UI
  • Zoom Rooms UI plus optional Crestron Smart Graphics® room control UI2
Ethernet
  • 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
Power over Ethernet
  • IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
PoE Injector
  • A PoE injector is included to power the touch screen if network PoE is not available
    Construction Plastic, smooth black finish, edge-to-edge glass with black surround
Dimensions
  • Height: 5.29 in. (134 mm)
  • Width: 9.63 in. (245 mm)
  • Depth: 4.67 in. (119 mm)
  • Weight 2.44 lb (1105 g)
UC Bracket Assembly
UC Engine
  • ASUS Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client
  • Zoom Rooms software
Management Client
  • XiO Cloud Service
Content Ingest
  • HDMI input via HDMI to USB 3.0 converter (model HD‑CONV‑USB‑200)
Display
  • Output Single or dual display support1
Display
  • Output Resolution 1080p
Power
  • 65 W via external 100‑240VAC, 50/60 Hz adapter (included)
Construction
  • Metal mounting bracket, black, preassembled with UC Engine and HD‑CONV‑USB‑200
Mounting
  • Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount;
    Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions
  • Height: 15.00 in. (381 mm)
  • Width: 14.50 in. (368 mm)
  • Depth: 1.72 in. (44 mm)
  • Weight 6.64 lb (3 kg)

Additional information

Brand

Crestron
