Crestron Flex B-Series UC-B30-T Microsoft Teams Rooms – Small Room

Crestron Flex B-Series UC-B30-T Microsoft Teams Rooms – Small Room

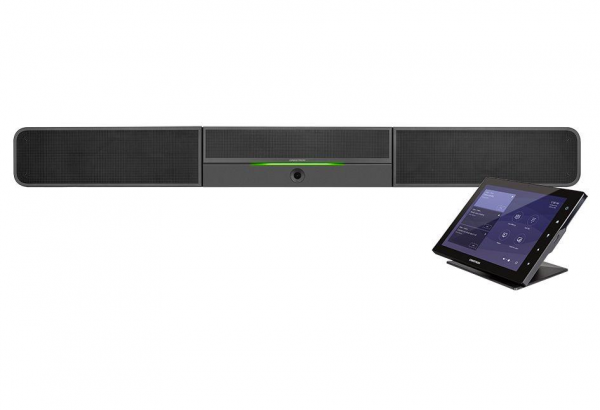

The Crestron Flex UC-B30-T system provides a video conference room solution for use with the Microsoft Teams Rooms intelligent communications platform. It supports a single video display and features a 10.1 in. touch screen (TS‑1070‑B‑S), UC Bracket Assembly (UC-BRKT-200-S-T-ASSY), and Crestron UC video conference smart soundbar & camera (UC‑SB1‑CAM‑FLEX).



Stock status: Call to check Availability

Product Information

The Crestron Flex UC-B30-T system provides a video conference room solution for use with the Microsoft Teams Rooms intelligent communications platform. It supports a single video display1 and features a 10.1 in. touch screen (TS‑1070‑B‑S), UC Bracket Assembly (UC-BRKT-200-S-T-ASSY), and Crestron UC video conference smart soundbar & camera (UC‑SB1‑CAM‑FLEX).

Native Microsoft Teams® Rooms Experience

The UC-B30-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on‑premises Skype® for Business software, or a hybrid of the two.

Intuitive User Interface

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070‑B‑S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2

Simplified Deployment

The UC Bracket Assembly (UC‑BRKT‑200‑S‑T‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.3

High‑Definition Video Conferencing with Impressive Audio

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC‑SB1‑CAM‑FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Crestron Control System Integration

The UC-B30-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms or Skype® for Business software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud serviceis an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Dual Control Option

A TS- series, TSS- series, or TSW- series5 7 in. or 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2,3

Key Features
  • Front‑of‑room video conferencing solution for a Microsoft Teams® Rooms environment
  • Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
  • Complete kit contains a 10.1 in. touch screen, Crestron® smart soundbar and camera, UC bracket assembly, and PoE injector— just add a display and mount
  • Easy to specify and install — no custom design, programming, or software installation required
  • Optional integration with Crestron® control systems
  • Direct connection option between UC Engine and touch screen for simple installation and configuration
  • Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service
  • Enterprise-grade security – connects and communicates securely over any enterprise or SMB network
  • Supports a single video display

CCS-UC-1 Crestron Flex tabletop conferencing device:
  • l Cable, CAT5e, RJ-45-to-RJ-45, 12 ft (3.66 m);
  • l Cable management hardware
CBL-USB-ABMICRO-6
  • USB Cable, USB Type A Male to Micro-B Male cable, 6 ft (1.8 m)
PW-2420RU
  • Universal power supply and power cord

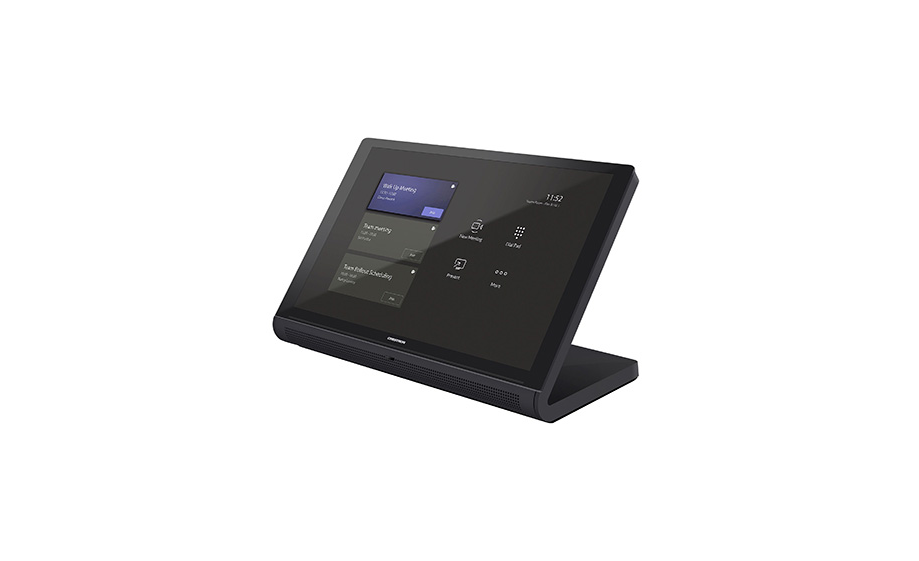

Crestron Flex tabletop conferencing device
  • Touch Screen 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
Mic Mute Symbol and Light Bar
  • (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
AEC
  • Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
Speaker
  • Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
Microphones
  • 360° quad mic array; Pickup Range (typical): 20 ft (6 m)
Extension Microphones
  • Supports two mic pods, model CCS-UCA-MIC KIT (sold separately)
Occupancy Sensor
  • 6 ft (1.83 m) PIR range in front of touch screen; Ethernet Dual-port 100 Mbps, enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service, primary port is IEEE 802.3at Type 2 PoE+ compliant.
USB
  • USB 2.0 micro Type B device port, supports UAC for audio interface(cable included)
Power Options
  • PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W)
  • PoE+ Powered Device
  • NOTE: If the additional mic pod (CCS-UCA-MIC) is used, PoE+ cannot be used to power the device.
  • 24 VDC: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU
Dimensions
  • Height: 4.11 in. (104 mm)
  • Width: 8.92 in. (227 mm)
  • Depth: 12.74 in. (324 mm)
  • Weight 5.5 lb (2.5 kg)
