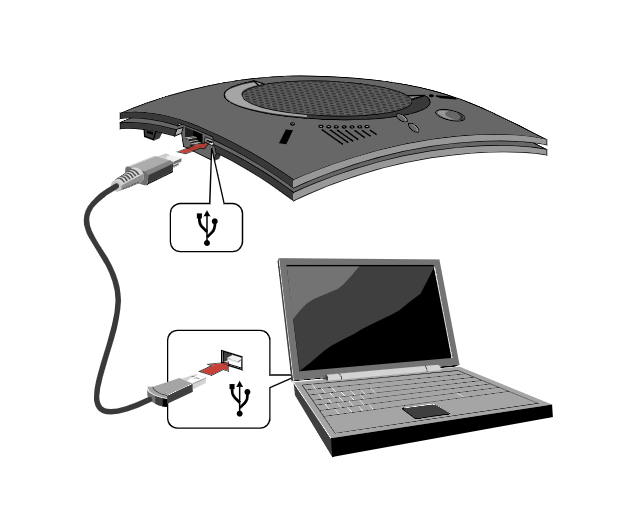

• USB Connector
• Version 2.0 Compatible
• Type: Mini B Female
• Keyed Connector
• Keyed RJ-45 (8 Conductor)

Controls

• Volume Up
• Volume Down
• Microphone Mute

Operating System Support

• Windows XP
• Windows Vista
• Windows 7

Audio

• Speaker
• Bandwidth: 190 Hz – 20 kHz
• Max Output Level: 85 dB SPL @ 1 meter

Microphone

• Bandwidth: 100 Hz – 12 kHz

Power

• USB-powered
• 5 VDC @ 500 mA Maximum

External Power Supply

• 100 – 240 VAC Input
• 9 VDC @ 560 mA Output

Environmental Operating temperature:

• 5 – 40° C (41 – 104° F)

Mechanical: CHAT 150 Dimensions (W x D x H):

• 7.4” x 7.4” x 1.8”
• (18.8 cm x 18.8 cm x 4.6 cm)

CHAT 150 Weight:

• 1.17 lbs (0.53 kg)

Compliance

• RoHS
• FCC Class A Part 15, FCC Part 15.19 (A) (3), ICES-003, EU Compliance

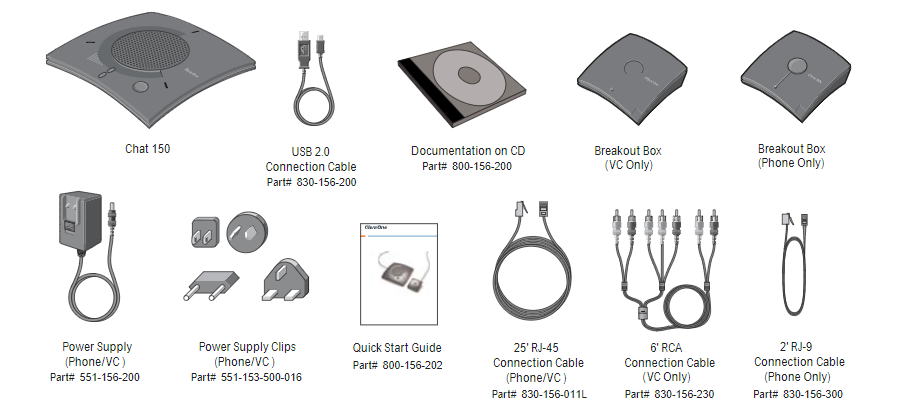

Model Numbers

• 910-156-200

Chat 150 USB

• Single CHAT 150 and Connecting Cable, 910-156-200-00

CHATAttach 150

•  Two (2) CHAT 150 Devices, Connecting Cables and Power Supply, 910-156-222

CHAT 150 Avaya

•  CHAT 150 and Connecting Cable to Avaya Enterprise Phone, 910-156-220

CHAT 150 Cisco

• CHAT 150 and Connecting Cable to Cisco Enterprise Phone, 910-156-230

CHAT 150 VC

• CHAT 150 and Cable to Video Conference System

Accessory Part Numbers

• 860-156-230L

CHAT 150 VC Accessory Kit

• Includes Video Conferencing, Breakout Box, Power Adapter, International Power Clips, RCA, Connection Cable, 25’ Link Cable, 860-156-222L

CHAT 150 Avaya Accessory Kit

• Includes Breakout Box for 2410, 2420, 4610 and 4621 Telephone, Handsets, Power Adapter, International Power Clips, RJ-9/RJ-9, Telephone Cable, 25’ Link Cable
  860-156-220L

Chat 150 Cisco Accessory Kit,

• Includes Breakout Box for 7940,7960, and 7970 Telephones, Power Adapter, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable, 910-156-225

CHATAttach Expansion Kit

•  Includes Cables, Power Supply and Quick Start Guide to Update Two (2), CHAT 150 Devices to CHATAttach
