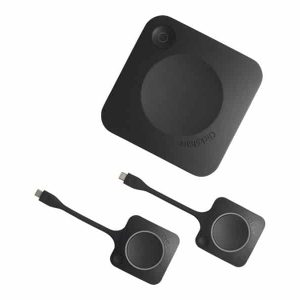

Barco Clickshare CX-20

Barco Clickshare CX-20

Seamless, wireless conferencing for small to medium-sized meeting and conference rooms
  • Full BYOD support
  • Collaborate remotely
  • Full interactivity and moderation (available in future firmware update)
  • Works with your device, your conferencing platform (UC&C) and a wide range of USB peripherals
  • Enhanced security
  • Connected and cloud managed
  • Delivered with 1 Conferencing Buttons
  • Collaborate with Conferencing Button or DesktopApp

Product Information

Bring your own meeting

With ClickShare CX-20 you can start a meeting wherever you are with co-workers and stakeholders around the world. Complete with full Bring Your Own Device (BYOD) support, ClickShare CX-20 enables meeting participants to use whichever device they prefer, which makes remote collaboration a breeze when joining the meeting from another location, and when participating in the meeting from smaller meeting and huddle rooms where colleagues can use their laptops, tablets or even smartphones.

Start IT-friendly remote meetings

ClickShare CX-20 is a fully integrated, wireless conferencing system that can be up and running in less than seven seconds. The Conferencing Button and the ClickShare App help to make the whole process of sharing content quick and easy – ideal for when time is at a premium–while the agnostic nature of ClickShare helps to ensure it can be used by anyone, on any device with a wide range of USB peripherals.

ClickShare CX-20 is fully compatible with Windows, Mac, iOS and Android devices; and it can also be used alongside any unified communications (UC) technology and a wide range of AV USB peripherals. Also, ClickShare CX-20 users can benefit from interactive features* including moderation, local view of the room display, annotation, blackboarding and touch back support allows users to control the touchscreen in the room.

With ClickShare CX-20 users can connect from whichever device they like, as the ClickShare CX-20 wireless conference system offers IT-friendly features including enhanced enterprise-grade security and seamless integration to protect data and the wider company network, as well as an XMS Cloud Management platform for easy device management and even analytics to ensure that you get the most out of your system and your meetings.

Technical Specifications:
  • Wireless connection to central screen
  • 1 user on-screen
  • Share from laptop, tablet or smartphone
  • HDMI output
Base Unit Dimensions
  • 34 mm x 135 mm x 135 mm
Power Supply
  • Standard 110/220 V AC plug
 Operating System
  • Windows 8/8.1/10. macOS 10.15 and higher.
  • Android v11 and higher (ClickShare App)
  • iOS 14 and higher (ClickShare App)
System Requirements
Minimum:
  • Intel i3 dual-core processor
  • 8GB RAM
  • OS:
    • Windows 10 latest build
    • Mojave latest build
Recommended:
  • Intel i5 4-core processor
  • 8GB RAM
  • OS:
    • Windows 10 latest build
    • Mac OS latest build
Video outputs
  • 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
Audio output
  • USB, HDMI
USB
  • 1 X USB-A, 1 X USB-C
ClickShare Buttons
  • 1
ClickShare App
  • Desktop & Mobile
Native protocols
  • Airplay, Google Cast, Miracast
Noise Level
  • Max. 25dBA @ 0-30°C
  • Max. 30dBA @ 30-40°C
Authentication protocol
  • WPA2-PSK in stand alone mode
  • WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
  • IEEE 802.11 a/g/n/ac and IEEE 802.15.1
ReachMax.
  • 30m (100 ft) between ClickShare Button and ClickShare Base Unit
  • Frequency band 2.4 GHZ and 5 GHz (DFS)
  • Frequency band2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
  • 1x Ethernet LAN 1Gbit
  • 1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)
Temperature range
  • Operating: 0°C to +40°C (+32°F to +104°F)
  • Max: 35°C (95°F) at 3000m
Storage:
  • -20°C to +60°C (-4°F to +140°F)
HumidityStorage:
  • 0 to 90% relative humidity, non-condensing
Operation:
  • 0 to 85% relative humidity, non-condensing
Anti-theft system
  • Kensington lock
Certifications
  • FCC/CE
Touch screen support & Interactivity
  • Yes
Wireless conferencing
  • via App or Button
Local view & moderation
  • Yes*
Network connection
  • LAN & WiFi *
Management and reporting
  • Yes
Warranty
  • 1 year standard. 5 years coverage via SmartCare

Additional information

Brand

Barco
