Product Information
Operating system
- Windows 8/8.1/10. macOS 10.13 and higher.
- Android v9 and higher (ClickShare App)*
- iOS 12 and higher (ClickShare App)*
Video outputs
- 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
Audio output
- HDMI
USB
- 1 X USB-A, 1 X USB-C

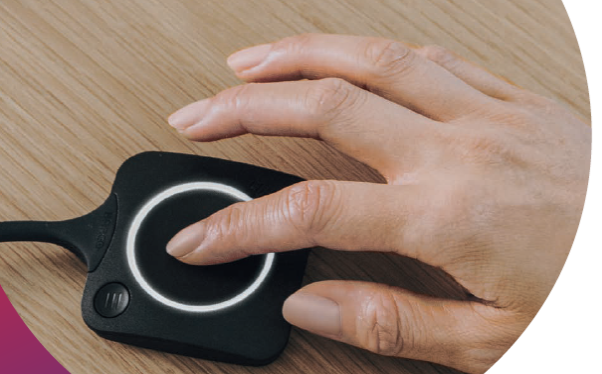

ClickShare Buttons
- 1
ClickShare App
- Desktop & Mobile
Native protocols
- Airplay, Google, Miracast*
Maximum number of simultaneous connections (with Buttons and/or App)
- 32
Noise Level
- Max. 25dBA @ 0-30°C
- Max. 30dBA @ 30-40°C
Authentication Protocol
- WPA2-PSK in stand alone mode
- WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
- IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
- Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz
Frequency band
- 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
- 1x Ethernet LAN 1Gbit
- 1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)
Temperature range
- Operating: 0°C to +40°C (+32°F to +104°F)
- Max: 35°C (95°F) at 3000m
- Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
- Storage: 0 to 90% relative humidity, non-condensing
- Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
-
Kensington lock
Certifications
- FCC/CE
Touch screen support & Interactivity
- Yes
Room Dock (peripheral support)
- No
Local View
- Yes
Network Connection
- Yes
ClickShare Base Unit Dimensions
Dimensions
- 34mm x 135mm x 135mm
Power Supply
- Standard 110/220 V AC plug
Power consumption
-
Operational: 5-10W, 24W Max
Wight
- 900 Grams
